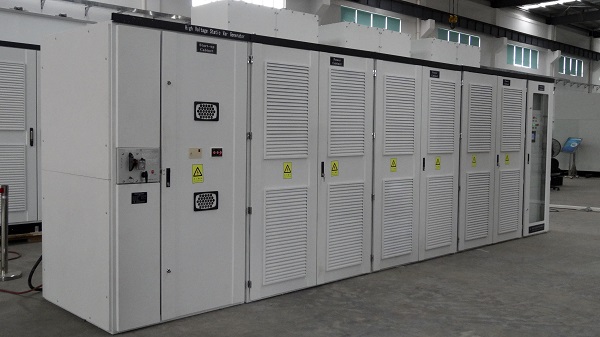

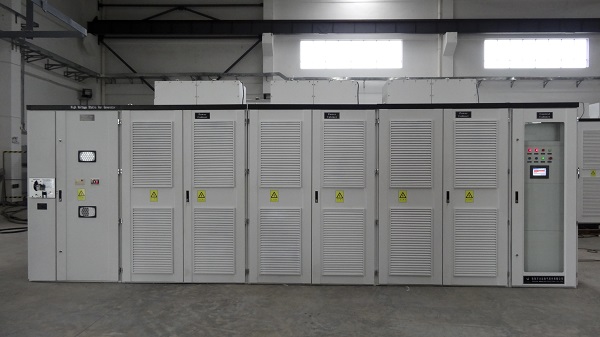

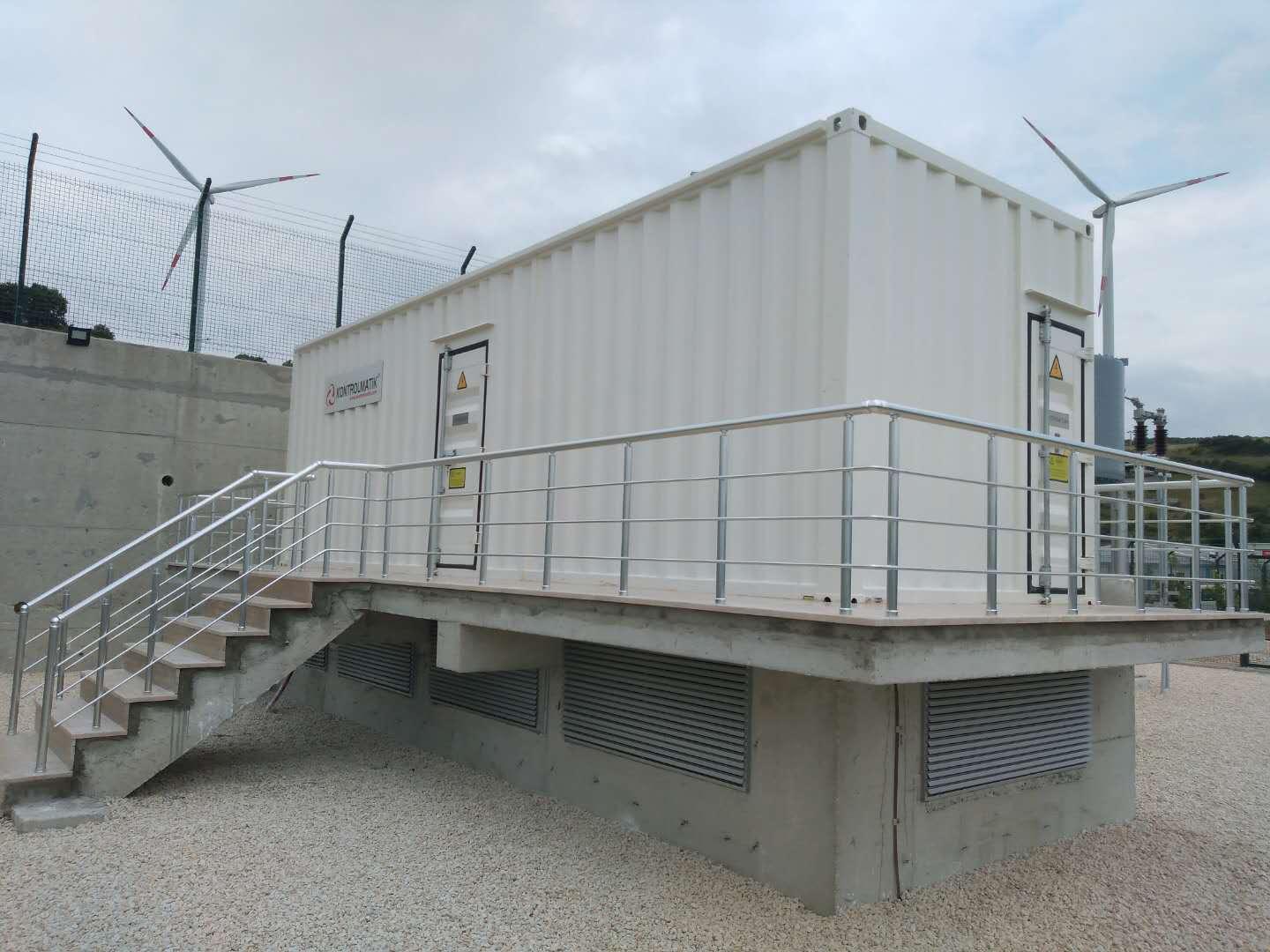

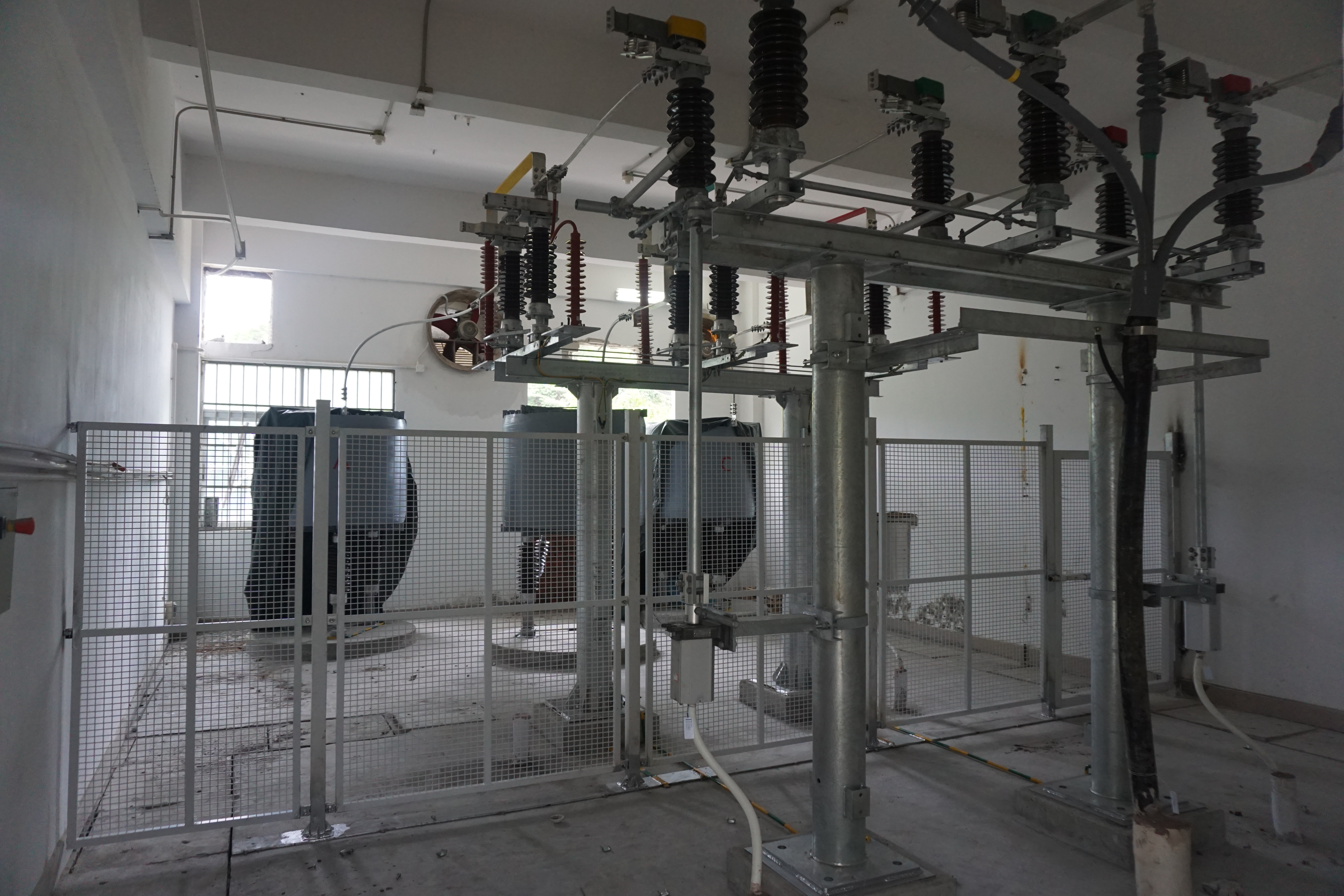

INTRODUCTION
(STATic Synchronous COMpensator), also known as SVG (Static Var Generator)
Sinopak STATCOM is a chain-type static synchronous compensator (STATCOM/DSTATCOM, also knows as SVG) —active dynamic reactive and harmonic compensation device at different compensation ranges. One STATCOM enables grid code compliance from HV Incoming Busbar directly.
SVG, different from impedance compensation (injecting or absorbing reactive power by capacitor and reactor) theory of traditional SVC, is based on voltage source converter, whose theory is equivalent to static synchronous condenser but whose performance is better than that of condenser and SVC. Especially, its operation range is wide, and its reactive compensation under low voltage(LVRT) is far greater than that of SVC.
OPERATION PRINCIPLE
The Static Synchronous Compensator is a voltage regulating device based on voltage source converters (IGBTs). It acts as a source or a sink of reactive power which is independent of ac system voltage. STATCOM can operate as a part of Flexible AC Transmission System (FACTS) to detect and compensate voltage fluctuations or flickers instantly, correct unbalanced loads and control power factor.
Operation | Waveform | Phasor Diagram | Remark |
No-load | Ics=0.ifVs=Vc | ||
Capacitive | If Vc > Vs , lcs is leading current . the current amplitude can be continuously controlled by adjusting Vc, STATCOM works as a capacitor whose capacitance can be continuously conreolled. | ||
Inductive output | If Vc < Vs, Ics is lagging current. At this point, STATCOM oprates as a reactor whose inductance can be continuously controlled. |

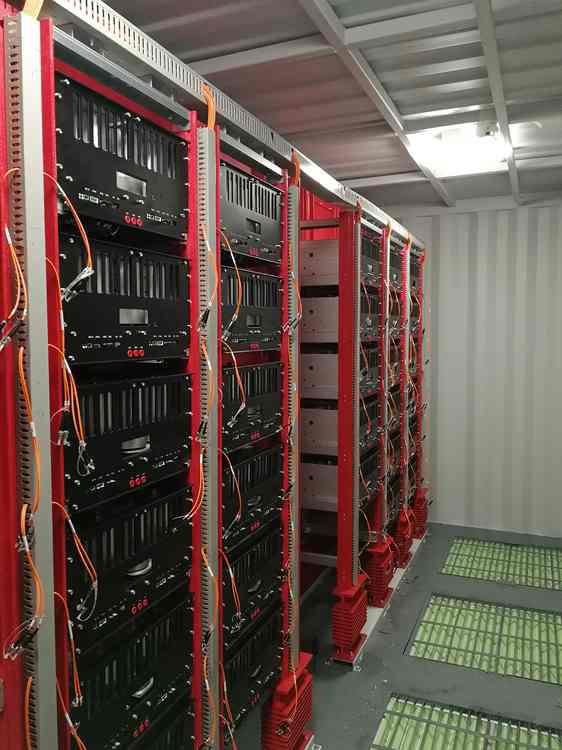

Sinopak STATCOM Topology H-Bridge Cascading Scheme
The cascading scheme is a multi-level topology that consists of many H-bridge power units with monopole multiplier modulation to achieve three-level output on AC side. Each phase adopts the carrier phase modulation method to obtain better voltage output waveform with much more level numbers. The cascading scheme can output phase voltage
with 2N +1 levels if each phase comprises N +1 chain (i.e. the H-bridge power unit).
This topology can be used in two connection schemes: Delta connection and Star connection:
TECHNICAL SPECIFICATIONS
Basic Parameters | |
Rated voltage |
|
Rated current |
|
Input voltage range | 0.9~1.1Pu |
Grid frequency | 50±2Hz |
Var range | -Mvar(Inductive)~+Mvar( Capacitive )continuous |
Wiring method | Y-connection |
Power loss | ≤1% |
THD | ≤3% |
Auxiliary power supply | 3P+N+PE 400Vac & 220VDC |
Cooling method | Water cooling/ Air cooling |
Insulation grade | IP54 |
Noise | ≤65dB |
Control and Protection | |
Reactive power response time | <5ms |
Voltage control time | <30ms |
Operation mode | Reactive power control |
Voltage control | |
Power factor control | |
Load compensation | |
Overload ability | 1.1times continues operation,give alarm after 3 minutes; 1.2times trip after 1 minute; 1.3times trip instantaneously |
Protection | Over voltage and under voltage Protection |
Over Current Protection | |
Short circuit Protection | |
Over or under frequency Protection | |
Driver Faults Protection | |
Over temperature Protection | |
Communication fault Protection | |
Communication | |
Communication interface | RS485, Ethernet |
Protocol | MODBUS RTU, IEC-103, IEC-104, IEC61850 |
Monitor mode | Local/Romote |
HMI | LCD |
Signal transmission | Optic-fiber |
Environment | |
Operation temperature | -25℃~+45℃without derating |
Storage temperature | -40℃~+70℃ |
Altitude | 2000m without derating |
Relative humidity | ≤90%, no condensation |
Pollution level | Level IV |
Standard | |
IEC 61010-1:2010 IEC 60204-1:2005/A1:2008 IEC 60068-2-1:2007 IEC 60068-2-2:2007 IEC 60068-2-78:2016 NB/T 41005-2014 DL/T 1648-2016 DL/T 1215.1-2013 DL/T 1215.2-2013 DL/T 1215.3-2013 DL/T 1215.4-2013 DL/T 1216-2013 GB/T 17626.8-2006 GB/T 17626.12-2013 GB/T 17626.18-2016 GB/T 2423.1-2008 GB/T 2423.2-2008 GB/T 2423.3-2016 |
